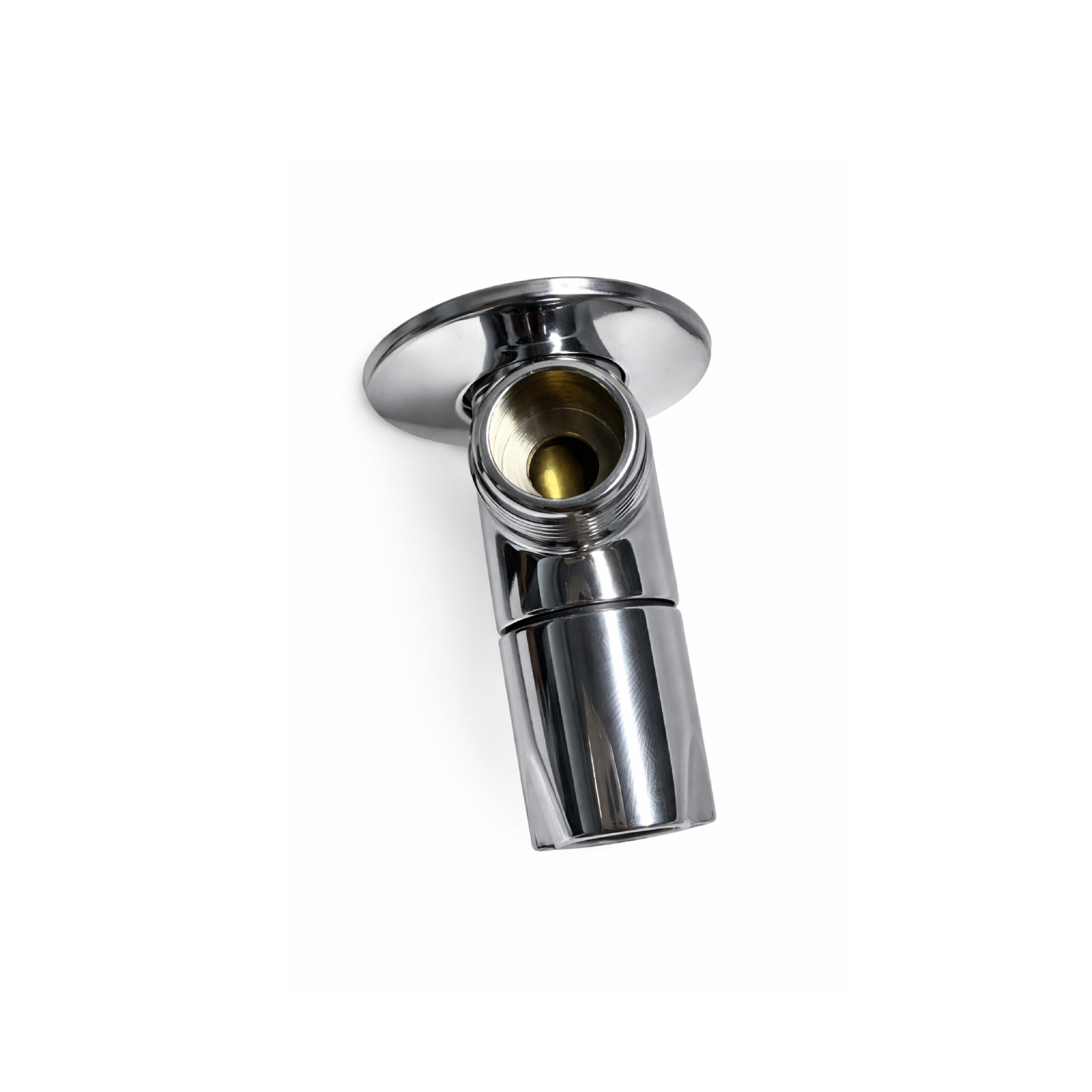

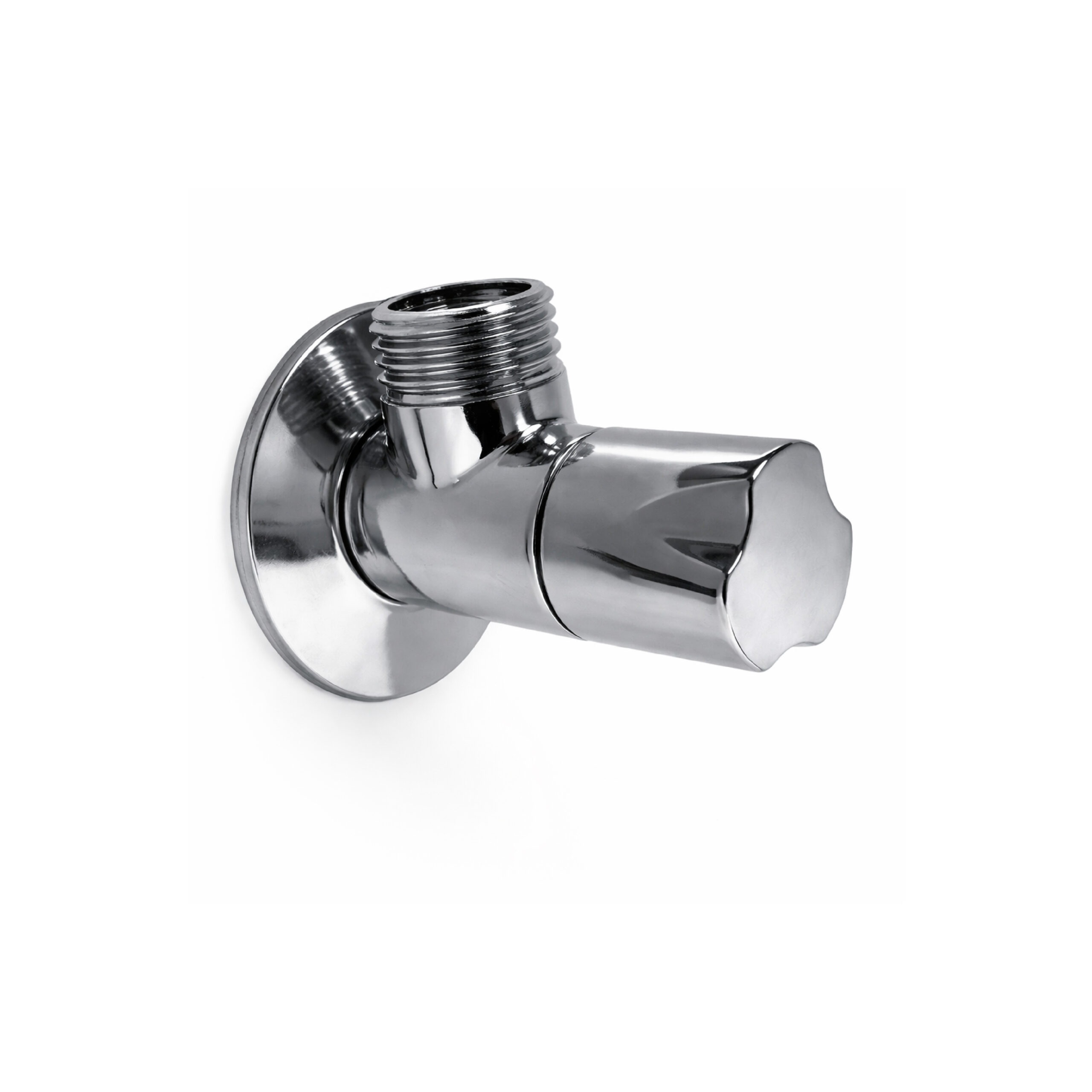

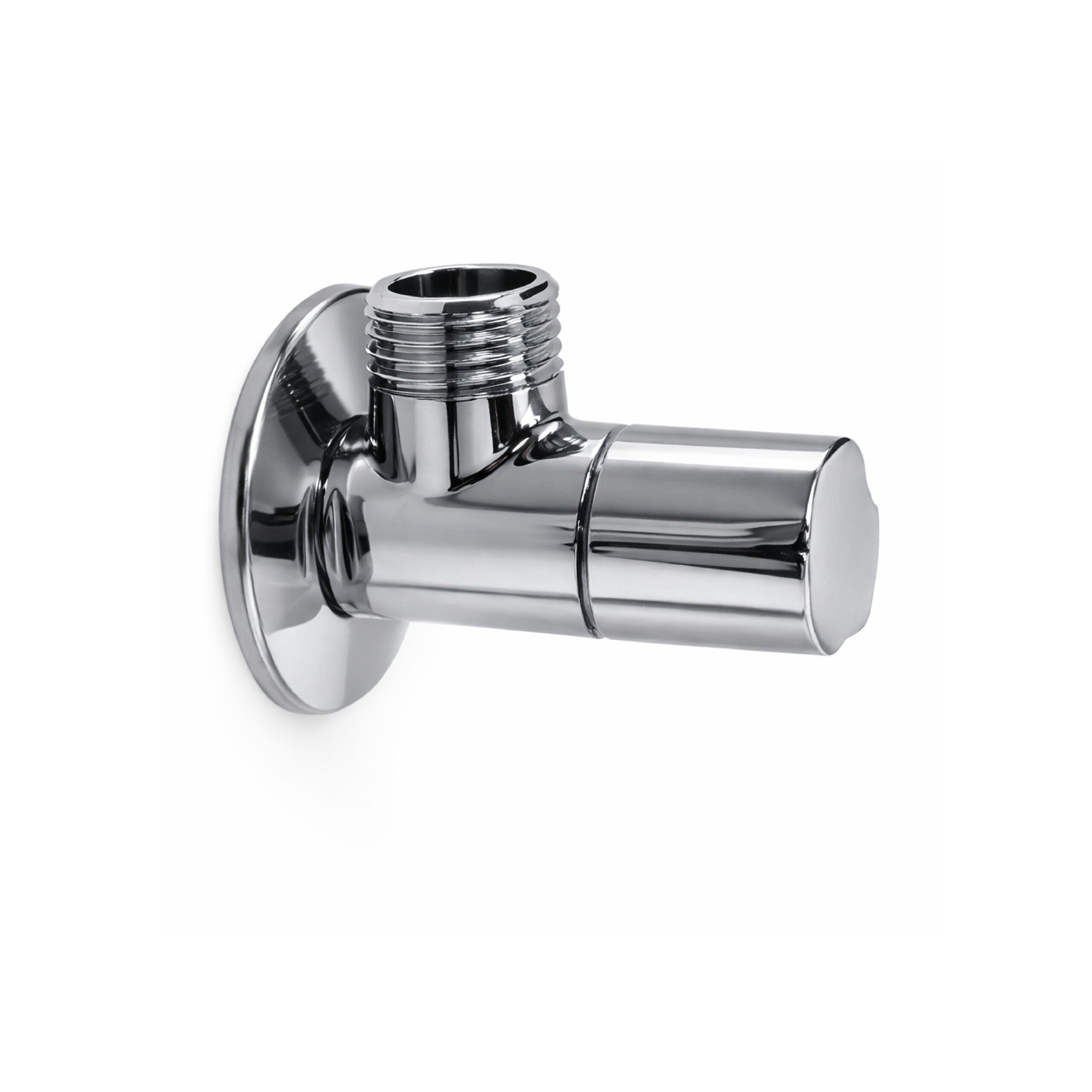

Angle crane FADO PREMIO, chrome
Артикул товара:
KZP01 1/2 "x1/2", KZP02 1/2 "x3/4", KZP03 1/2 "x3/8"
Ceramic beechwood taps are designed to connect sanitary appliances (flush cisterns, mixers, washing machines, dishwashers, etc.) to the cold and hot water supply network using flexible connectors with a cap nut. The tap allows you to shut off the water supply to a specific source of consumption.
Features.
Materials.
Documentation
Features.
№
Name of the indicator
Meaning.
1
Shutter tightness class
"А"
2
Normal service life, years
30
3
Minimum service life, cycles
20 000
4
MTBF, cycles
300 000
5
Conditional standard pressure Pn, MPa
20
6
Operating temperature range, C°
From -5 to +80
7
Handle rotation angle
90°
Materials.
№
Element name
Meaning.
1
Body
Brass CW617N
2
Saddle rings
NBR
3
Stem
Brass CW614N
4
Sealing rings
EPDM
5
Material for the axle box
Brass CW671N
6
Insertion in the booklet
Ceramics
7
Gasket
Silicone
8
Handle
Brass CW671N
