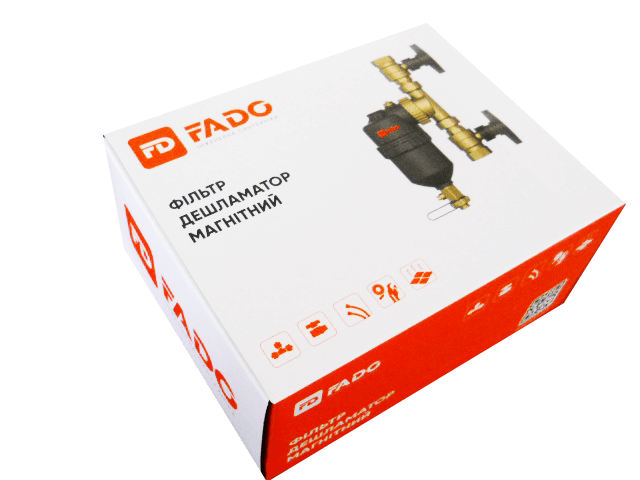

FADO Magnetic desluder filter
Артикул товара:
DFM01 - DFM03
The deslimer filter is used to clean the liquid flow from insoluble
mechanical impurities, including iron corrosion products.
The desluder filter is widely used in various heating/cooling systems,
where chemically treated water or liquids are used as a heat carrier for
water-based and glycols (up to 30%) at transported medium temperatures up to 120°C and
pressure up to 1.2 MPa.
Thanks to the sophisticated, versatile connection between the magnetic
The filter-desluder is rotatable, so that it can be adjusted to the upper part of the housing,
to realize the possibility of installing it on a horizontal section of the pipeline,
and on the vertical section, while maintaining its functional characteristics unchanged.
position in space.
Description.
Materials.
Technical documentation
FADO Magnetic desluder filter
Technical characteristics
Units
DFM01
DFM02
DFM03
Threaded connection
inches
3/4''
1"
1 1/4"
Working environment
.
Solutions with glycol content up to 30%
Solutions with glycol content up to 30%
Solutions with glycol content up to 30%
Maximum overpressure
bar
12
12
12
Maximum permissible temperature of the coolant
*С
120
120
120
The magnetic field generated by the rod
Gs
12 000
12 000
12 000
Volume of the filter chamber
ml
530
530
530
Materials.
Title.
Material.
1
Unit for connecting a magnetic desander to the system
brass
2
Lower part of the casing (sludge tank)
polyamide + fiberglass PA66
3
Filter element (50 microns)
HDPE polyethylene
4
Flushing tap
HPb58-3
5
The upper part of the housing (with a shaft for placing the magnetic rod)
polyamide + fiberglass PA66
6
Mechanical air vent
polyamide + fiberglass PA66
7
Magnetic removable rod
Nd+Fe+B
8
Ball valve with quick release connector
HPb58-3
9
Gasket
EPDM
10
Disassembly wrench item 2
polyamide + fiberglass PA66
