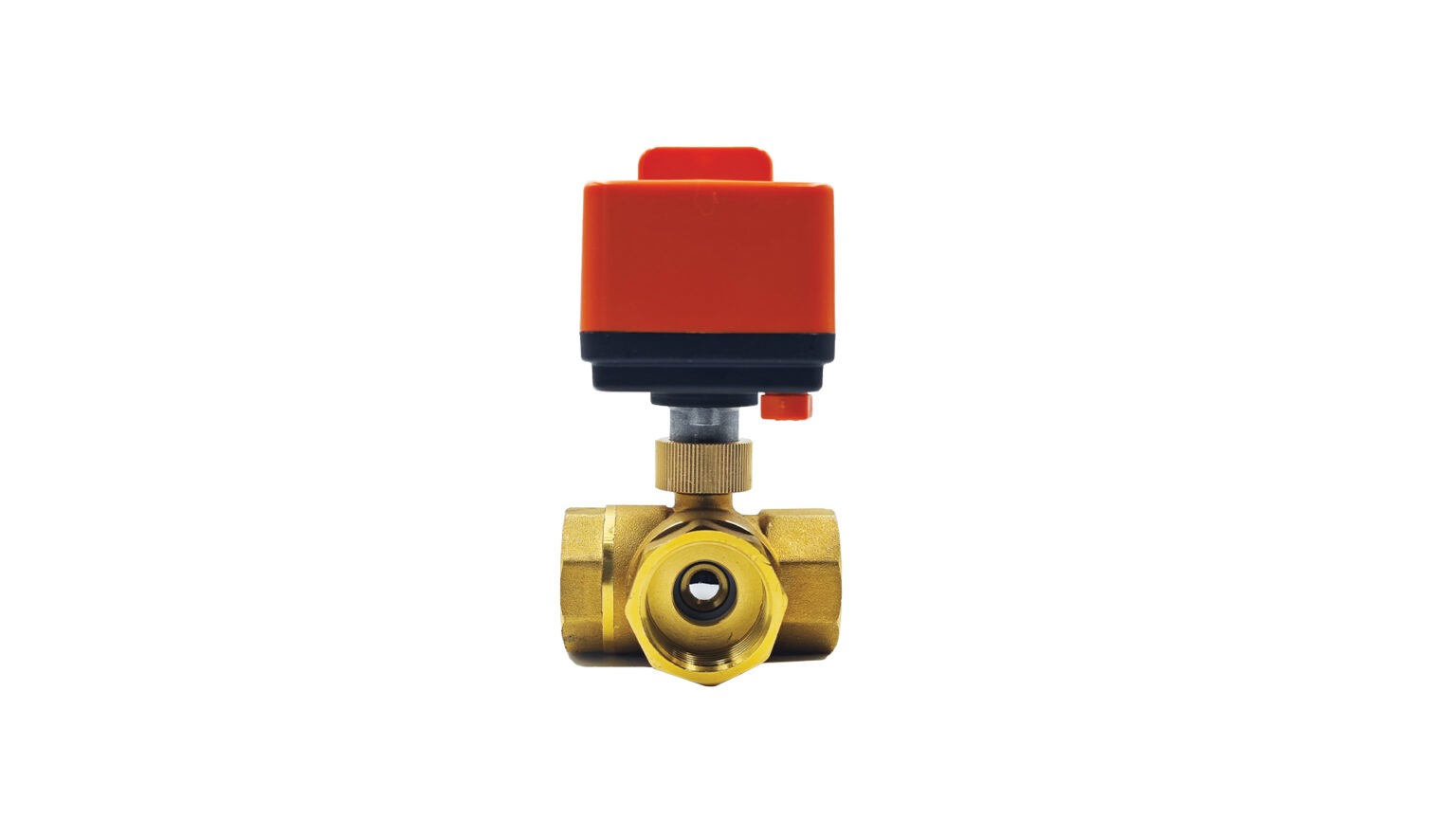

FADO Crane with electric drive
Артикул товара:
KSE31-KSE33
The electrically operated ball valve is designed to open or close the fluid supply by means of a controller in water supply or heating systems. The electrically operated ball valve is characterized by low power consumption and high efficiency. The stabilized starting speed effectively prevents possible water hammer. In standby mode, the power consumption is 2 watts. Electrically operated cranes also have a manual crane switch (open, close). The crane is powered by a DC voltage of 9-30V. When the voltage is turned off, the crane automatically closes.
Description.
Dimensions
Technical documentation
Split system
Technical characteristics
Units
KSE31
KSE32
KSE33
Size
inches
1/2''
3/4''
1''
Type by functionality
.
Normally open
Normally open
Normally open
Supply voltage/frequency
.
9-30 V 50-60 Hz
9-30 V 50-60 Hz
9-30 V 50-60 Hz
Power
W
2
2
2
Temperature range during storage
.
from -5 °C to +60 °C
from -5 °C to +60 °C
from -5 °C to +60 °C
Air temperature range during operation
.
from 0 °C to +60 °C
from 0 °C to +60 °C
from 0 °C to +60 °C
Liquid temperature range
.
+15-95°С
+15-95°С
+15-95°С
Rated operating pressure
.
PN16
PN16
PN16
Fluid types
.
% solution ch.
% solution ch.
% solution ch.
Bandwidth
m3/h
11
20
23,5
The force developed on the rod
.
7Nm
7Nm
7Nm
Protection class against external influences
.
IP 54
IP 54
IP 54
Layer progress
.
90°
90°
90°
Cycle time (open/closed)
sec
10
10
10
Length of the connecting wire
mm
300
300
300
Drive body material
.
ABS plastic
ABS plastic
ABS plastic
Motor type
.
Synchronous
Synchronous
Synchronous
