FADO New filter
Артикул товара:
Art. F1-F3

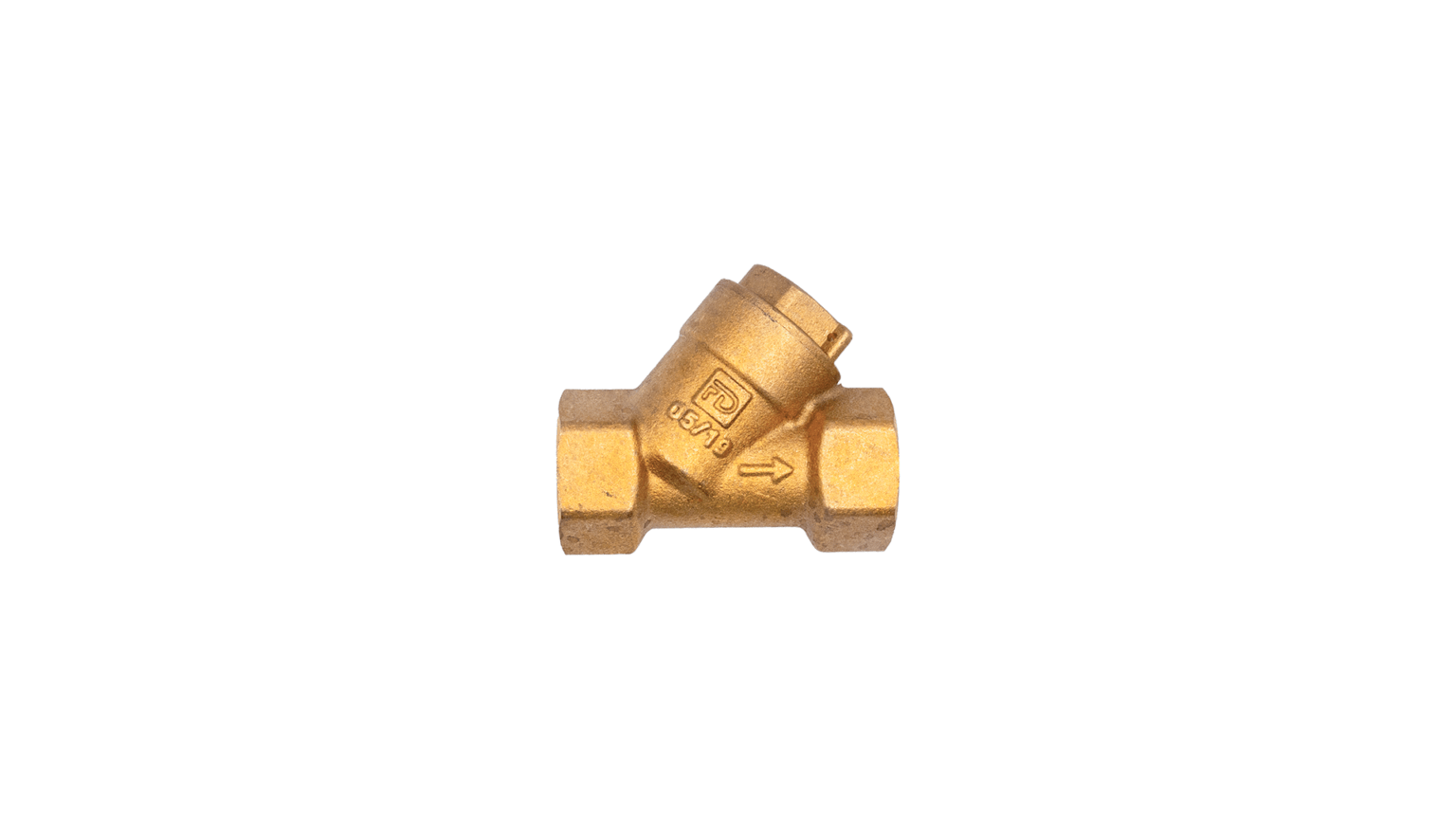

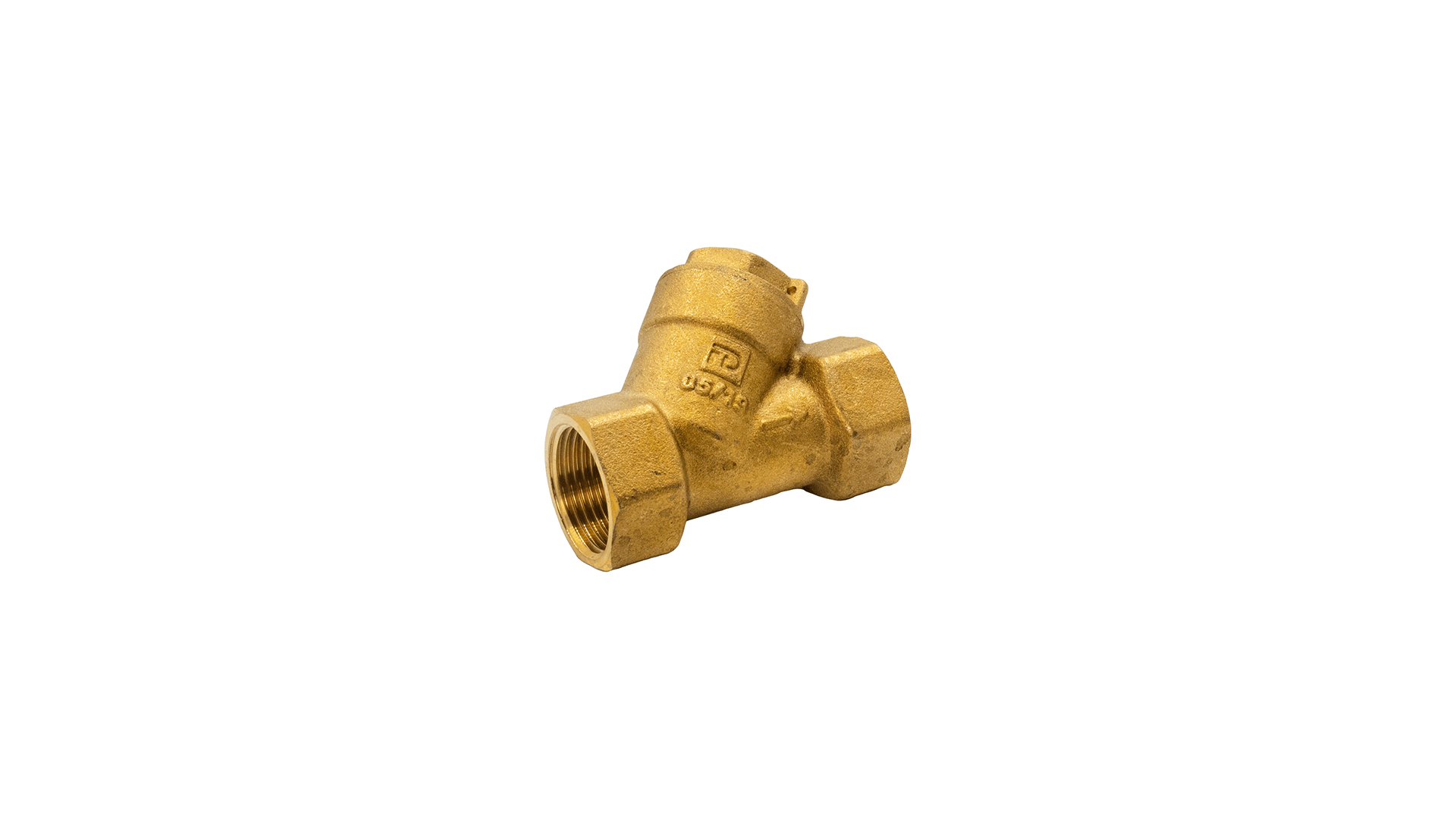

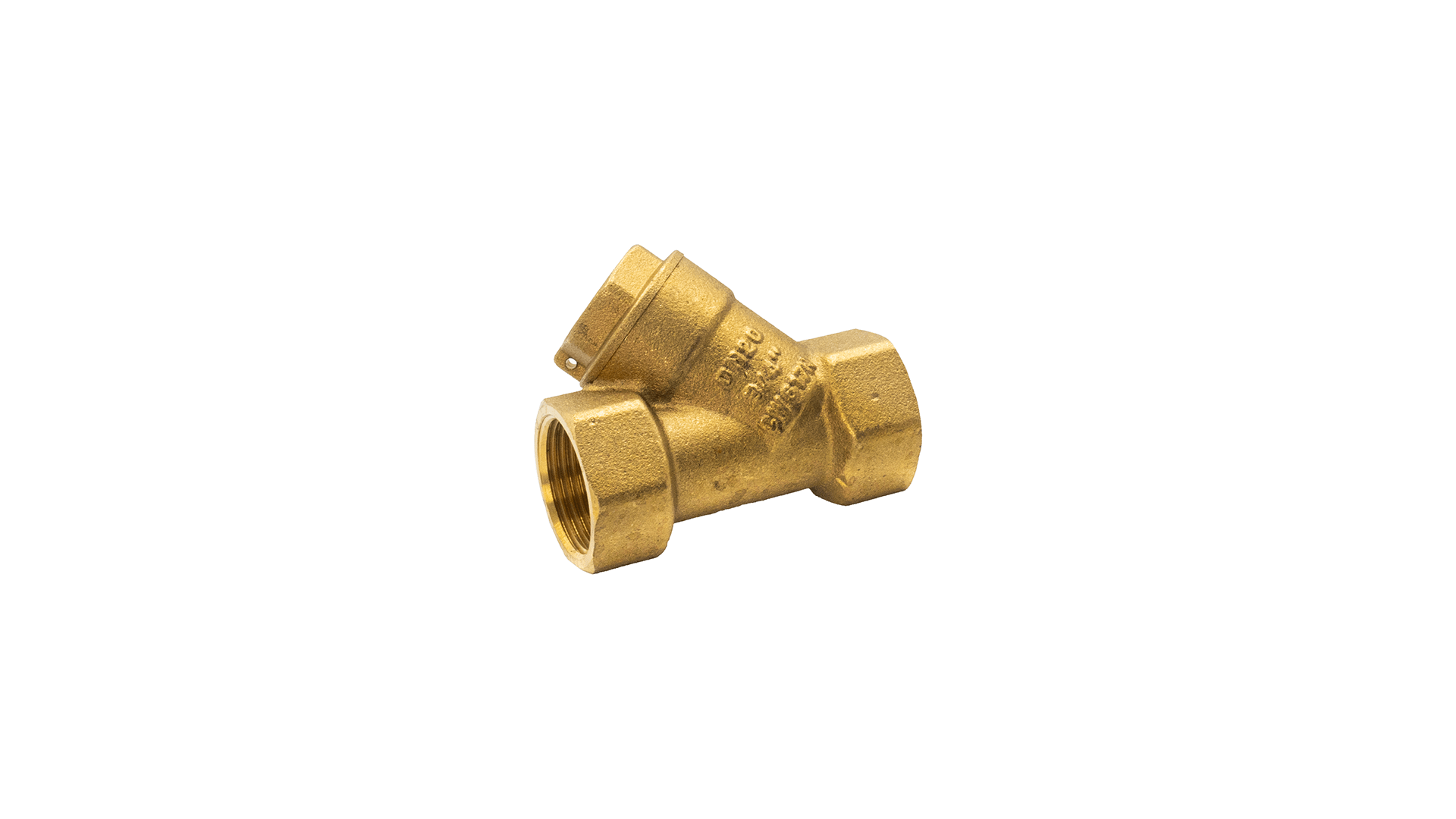

The FADO New filter is a full bore service filter with an extended service life. Equipped with an NBR sealing ring. The body is brass, nickel-plated. Connection thread - female / male. They are used to clean the flow from mechanical impurities in pipeline systems of hot and cold water, compressed air, oil and liquid hydrocarbons at a temperature of the transported medium up to 150°C
Description.
Features.
Materials.
Documentation
Description.
Article no.
Size, mm
Weight, g
Packaging
Box
F1
1/2"
152
30
120
F2
3/4"
210
20
80
F3
1"
379
12
48
Features.
Name of the indicator
F1
F2
F3
FS01
FS02
Size
1/2"
3/4"
1"
1/2"
3/4"
Maximum working pressure, bar at working medium temperature, °С
150
150
150
110
110
Normal service life, years
30
30
30
30
30
Filter element mesh size, μm
400
400
400
100
100
Number of cells per cm²
180
180
180
n.d.
n.d.
Conditional standard pressure PN, bar
20
20
20
16
16
Nominal flow rate at the clean filter, m²/h
1,35
2,2
4,38
1,47
2,29
Materials.
№
Name
Meaning.
1
Body
Brass CW 617N
2
Filter element
AISI 316
3
Plug
Brass CW 617N
4
Sealing rings for collapsible joints
AISI 316
