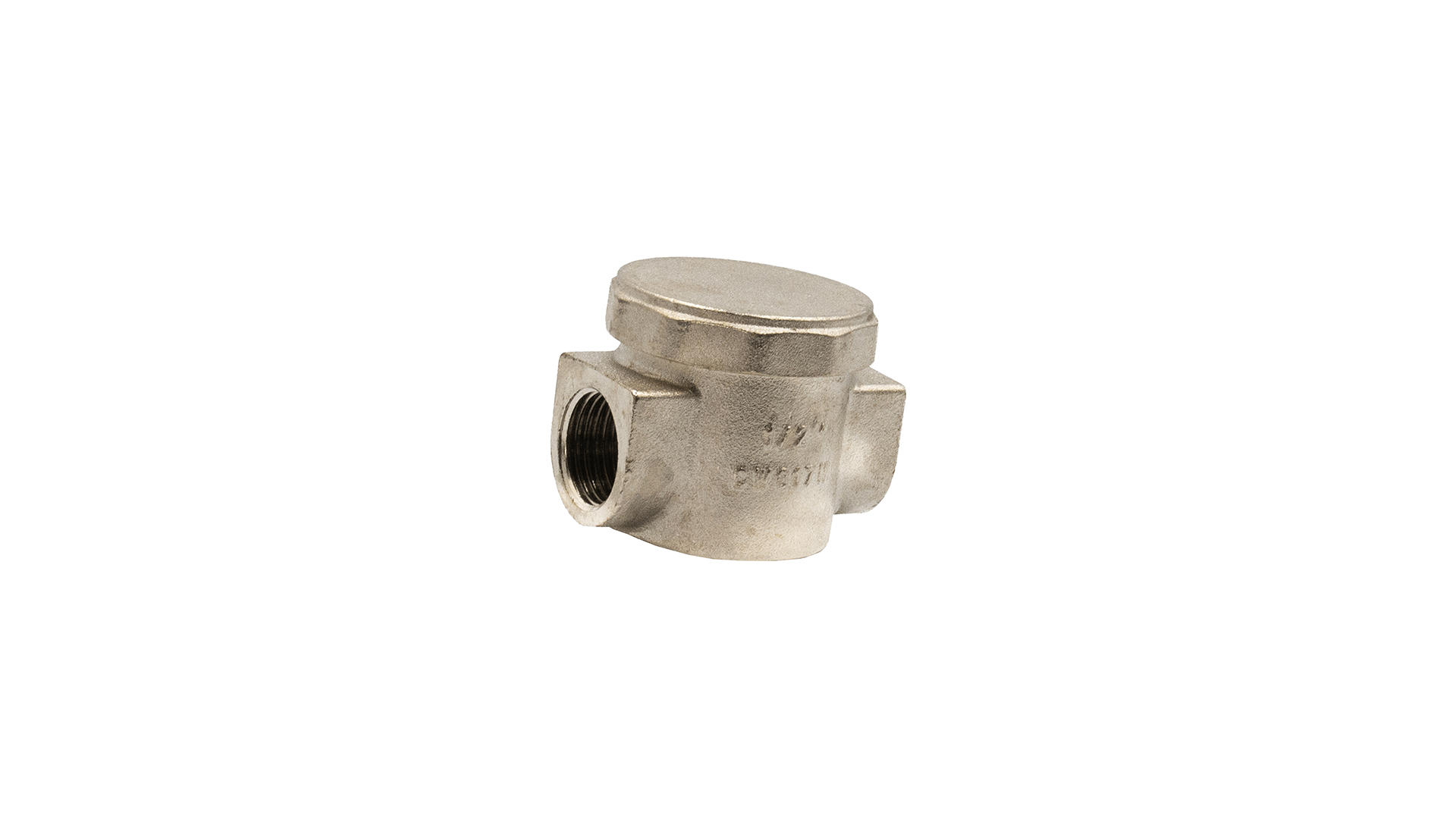

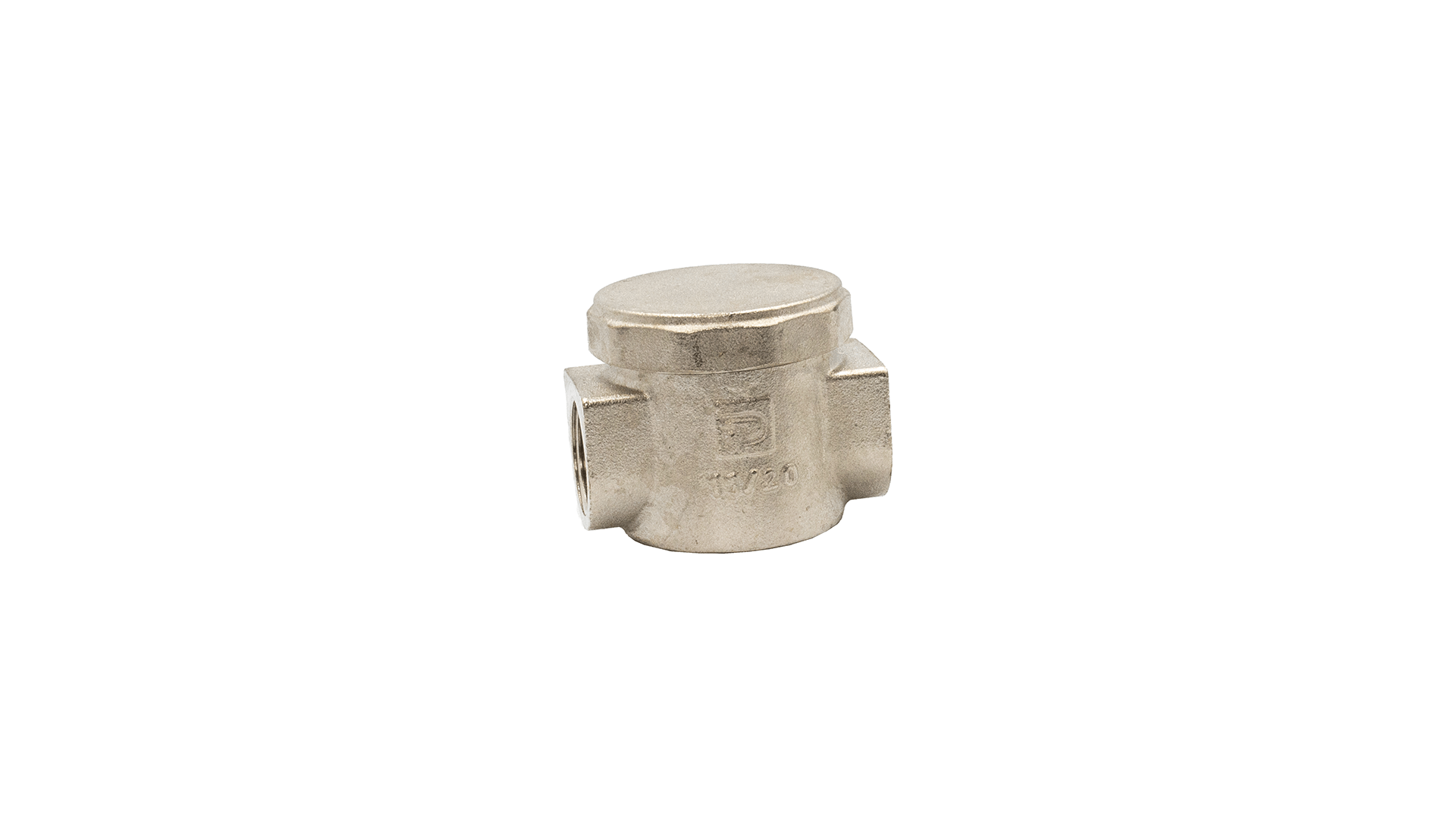

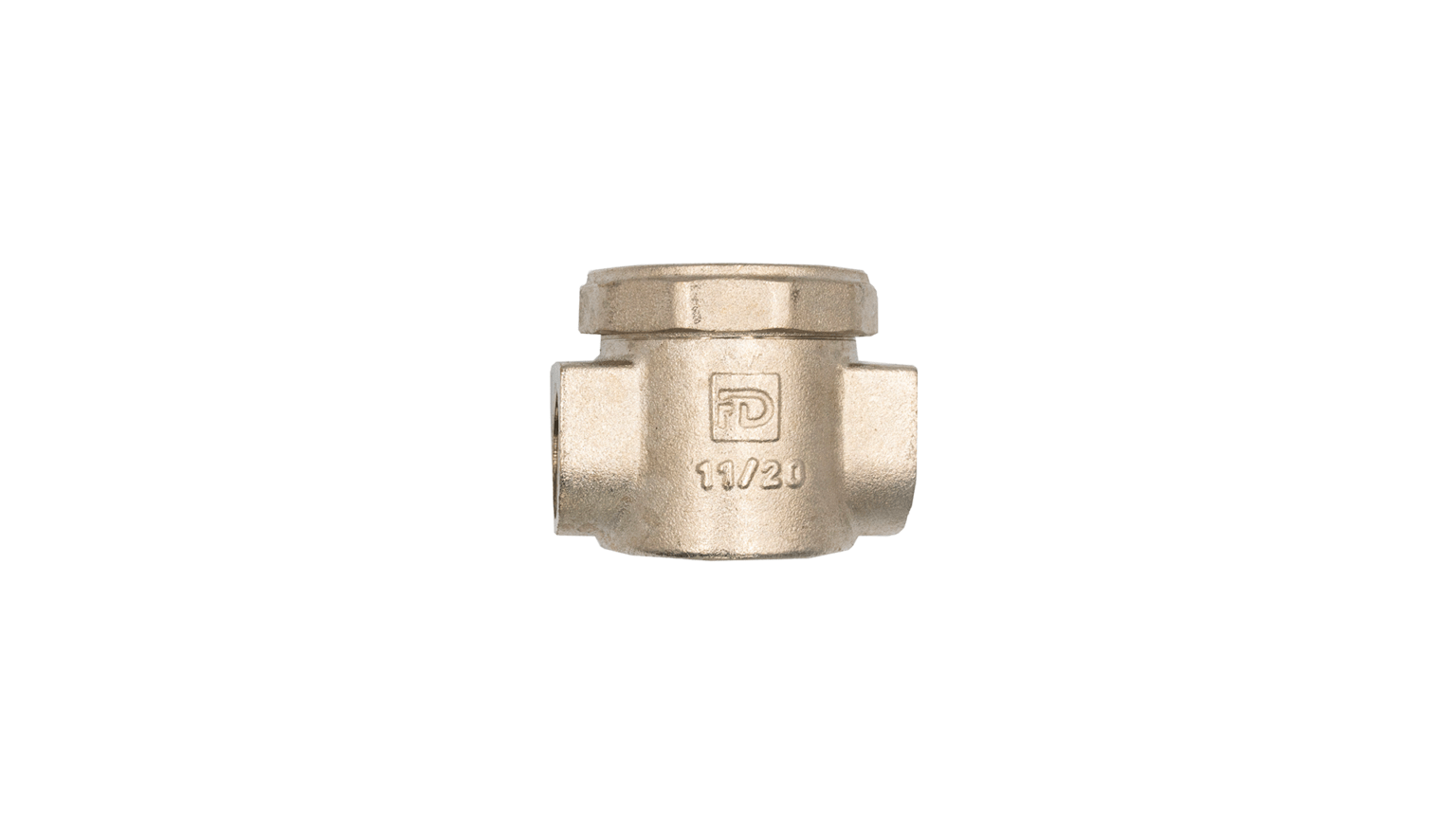

Gas filter FADO New
Артикул товара:
Art. FG01
The FADO New gas filter is a full bore service filter with an extended service life. The body is brass, nickel-plated. Connection thread - internal / internal. The design of the valve provides for the possibility of its cleaning and maintenance (just unscrew the threaded plug and pull out the valve mechanism). It is designed to clean natural gas, air and nitrogen from dust particles, scale and precipitation. Installation method: any (vertical and horizontal)
Description.
Features.
Materials.
Documentation
Description.
Article no.
Size, mm
Weight, g
Packaging
Box
FG01
1/2"
204
10
100
Features.
№
Name of the indicator
Meaning.
1
Maximum operating temperature, °С
70
2
Normal service life, years
30
3
The size of the filter element cells, μm
400
4
Number of merchants per cm²
180
5
Conditional standard pressure PN, bar
20
6
Degree of purification, microns
50
Materials.
№
Name
Meaning.
1
Body
Brass CW 617N
2
Sealing rings for collapsible joints
Ethylene propylene diene rubber EPDM
