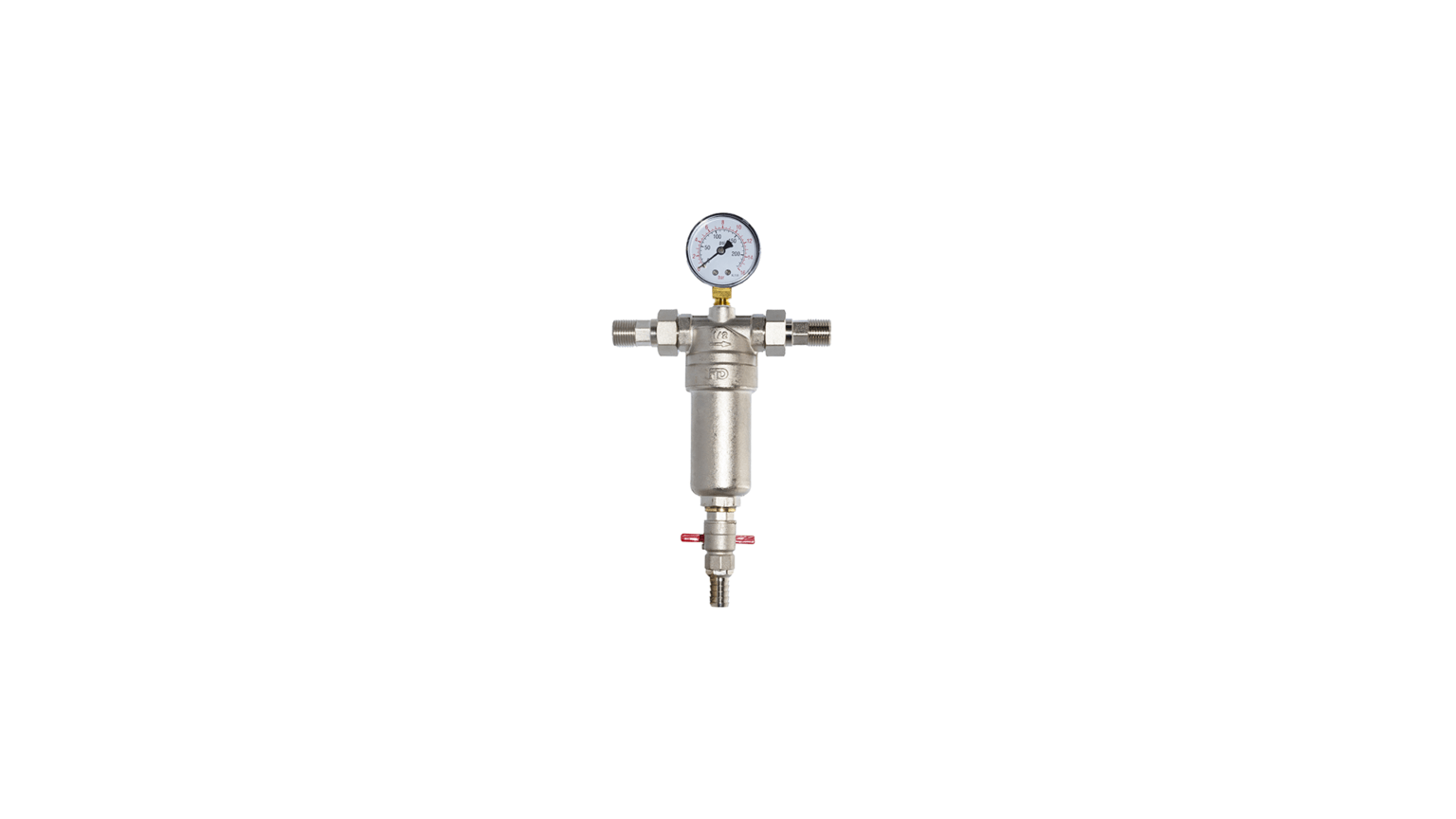

Self-cleaning filter FADO New
Артикул товара:
Art. FS01-FS02
The FADO New self-cleaning filter is a full bore maintenance self-cleaning filter with an extended service life. Equipped with an NBR sealing ring. The body is brass, nickel-plated. Connection thread - external / internal. Designed to clean the liquid flow from mechanical impurities in hot and cold water piping systems. It is equipped with a pressure gauge for monitoring the contamination of the filter element and a drainage valve for draining impurities during flushing.
Description.
Features.
Materials.
Documentation
Description.
Article no.
Size, mm
Weight, g
Packaging
Box
FS01
1/2"
1012
1
12
FS02
3/4"
1203
1
12
Features.
№
Name of the indicator
FS01
1
Size
1/2"
2
Maximum working pressure, bar at working medium temperature, °С
110
3
Normal service life, years
30
4
Filter element mesh size, μm
100
5
Number of cells per cm²
n.d.
6
Conditional standard pressure PN, bar
16
7
Nominal flow rate at the clean filter, m²/h
1,47
Materials.
№
Name
Meaning.
1
Body
Brass CW 617N
2
Filter element
AISI 316
3
Plug
Brass CW 617N
4
Sealing rings for collapsible joints
NBR
