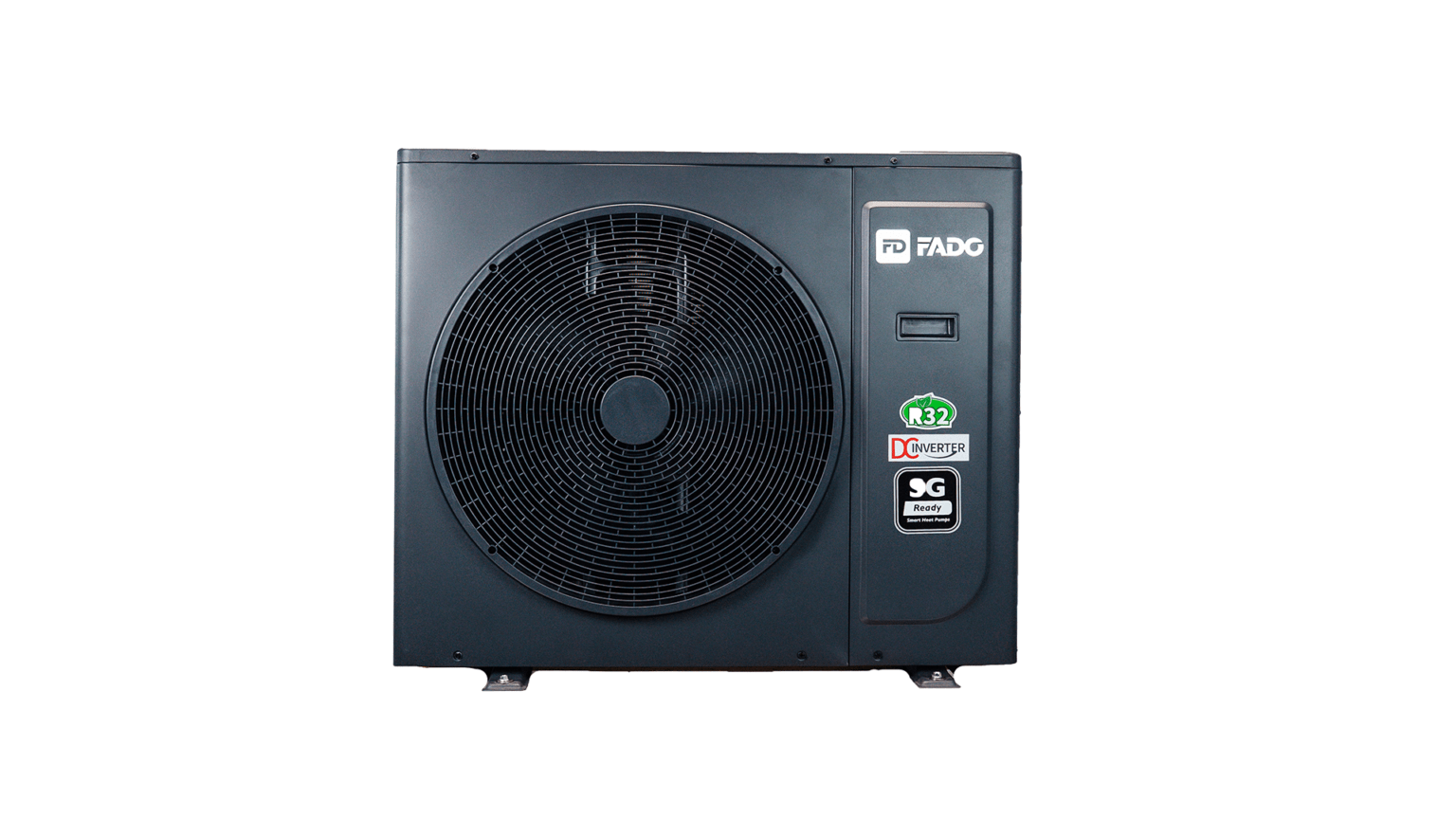

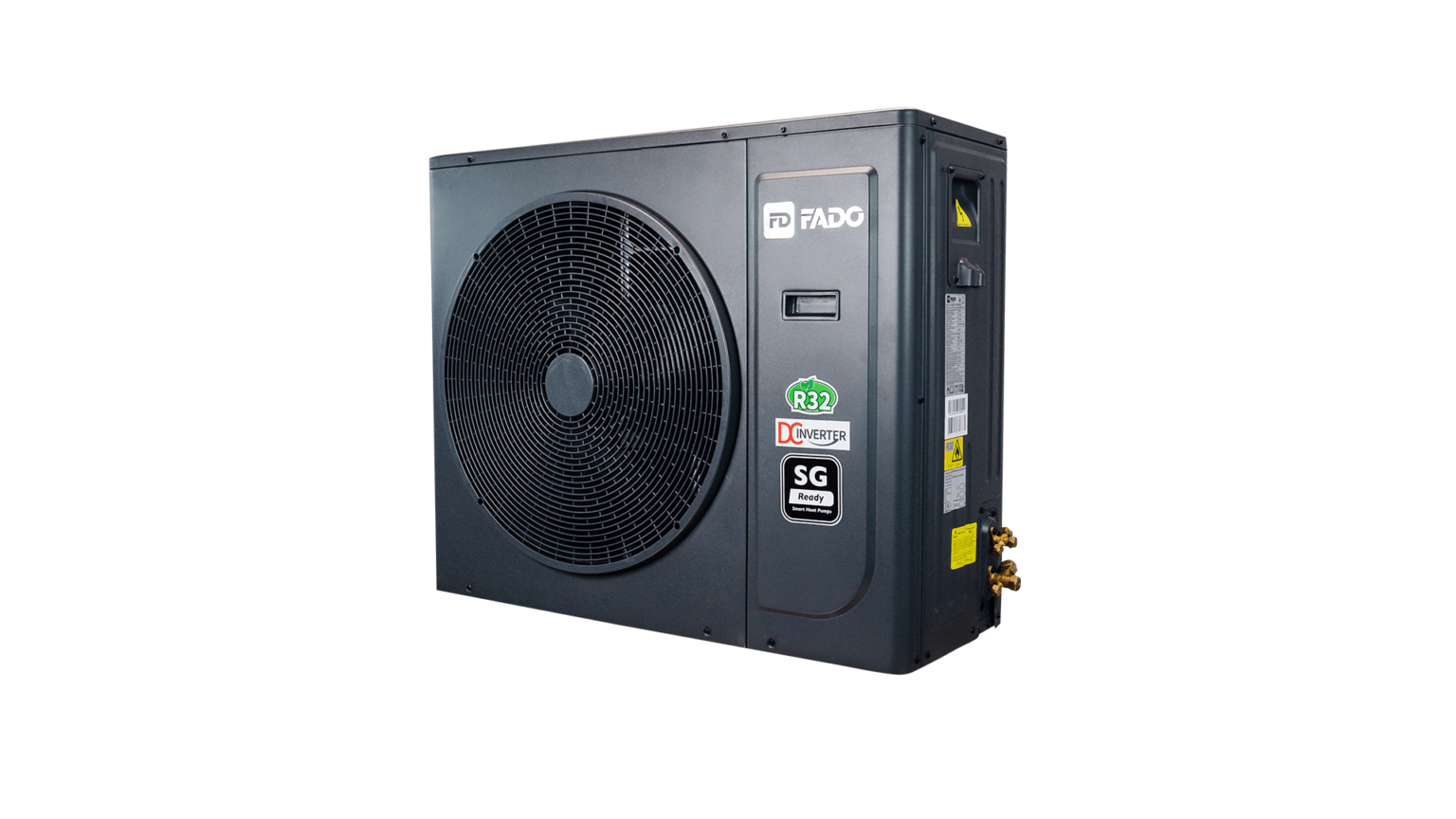

FADO Heat pump NTS16F3
Артикул товара:
NTS16F3
The split heat pump system consists of two parts: an indoor unit and an outdoor unit, which are connected by copper pipes and carry R32 freon.
The indoor unit is the inner part of the air source heat pump that is used for heating or cooling by transferring heat in a heat exchanger. Indoor
the unit can be connected to a fan coil, heating, underfloor heating, low temperature
a radiator and a domestic hot water tank. The system is equipped with additional
a heater to promote heating at low temperatures.
The heat pump is based on the reverse thermodynamic Carnot cycle. The key component of the cycle is the working fluid (refrigerant), which has special thermodynamic properties.
Description.
Dimensions
Technical documentation
Split system
Technical characteristics
Units
NTS16F3
Dimensions
mm
1040x860x432
Thermal power (A7W35)
kW
16,2
Energy consumption (A7W35)
kW
3,67
Coefficient of efficiency of the coolant (A7W35)
4,41
Heat output (A-7/-8W30/35)
kW
13,2
Energy consumption (A-7/-8W30/35)
kW
5,05
COP efficiency factor (A-7/W35)
2,61
Cooling capacity (A35/24/W12/7)
kW
14,0
Energy consumption (A35/24/W12/7)
kW
5,71
Energy efficiency ratio EER (A35/24/W12/7)
2,45
Outdoor temperature range in heating mode
°C
-25 +35
Outdoor temperature range in cooling mode
°C
-5 +43
Supply temperature max
°C 65
65
Refrigerant type
R32
Electrical parameters
V / Hz
380-415V, 50Hz
Sound power level (-A7/W35) (outdoor unit)
dB(A)
49
Low temperature operation (W35)
А+++
Medium temperature operation (W55)"
А++

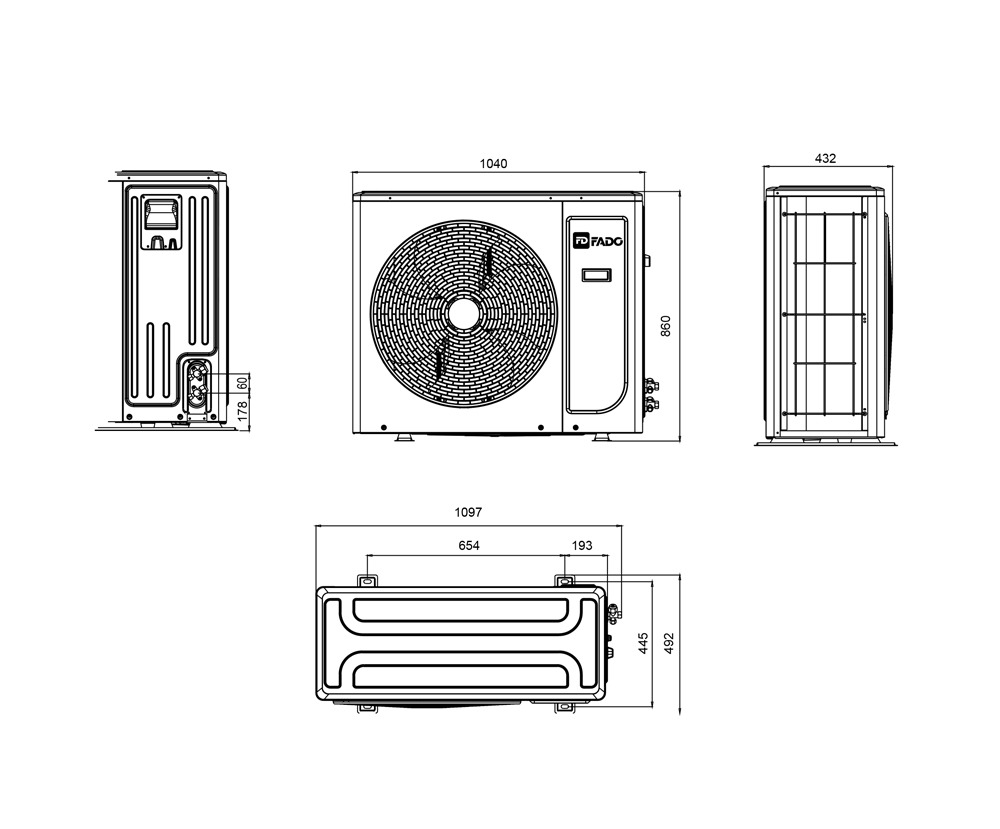

Diagram of the outdoor unit
Dimensions
mm
Length.
1040
Height
860
Width
432
