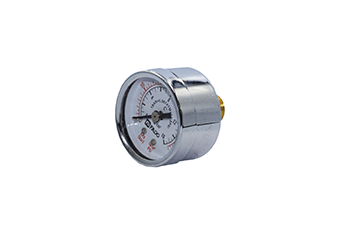

FADO frontal pressure gauge
Артикул товара:
MF01
FADO frontal pressure gauge is a full bore pressure gauge with a long service life. The measuring mechanism of the pressure gauge is made of brass, the body is made of steel. The body diameter is 42 mm. The measuring range is from 0 to 10 bar. Accuracy class is 1.6. Connection - axial (rear), 1/4".
Description.
Features.
Documentation
Description.
Article no.
Size
Packaging
Box
MF01
42*1/4"
1
200
Features.
№
Element name
Meaning.
1
Housing diameter, mm
42/55
2
Accuracy class
1,6
3
Pressure reading range, bar
0 - 10
4
Ambient temperature, °C
0 - 60
5
Housing protection class
IP40
6
Sensor material
Copper
7
Diameter of the connection thread
G 1/4
