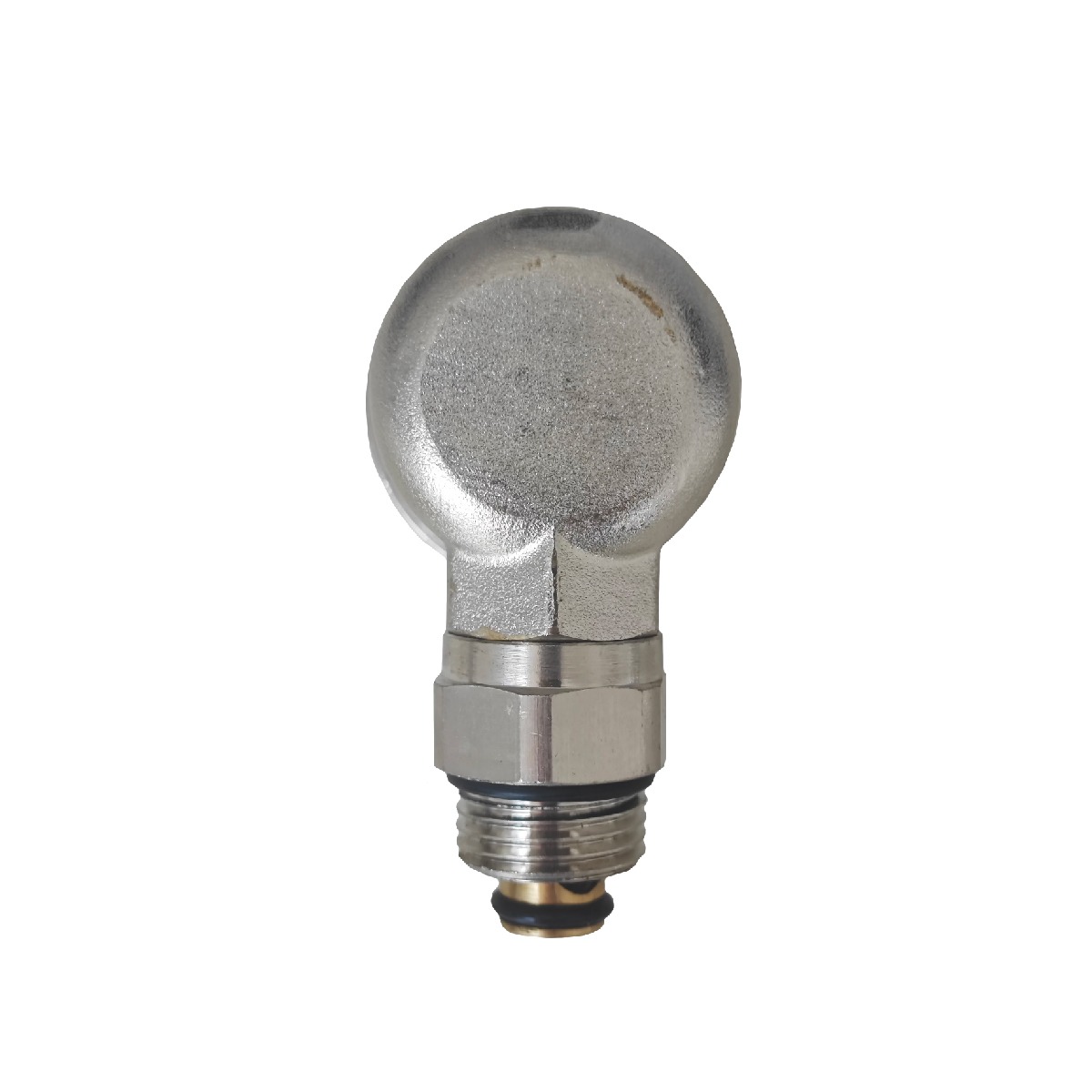

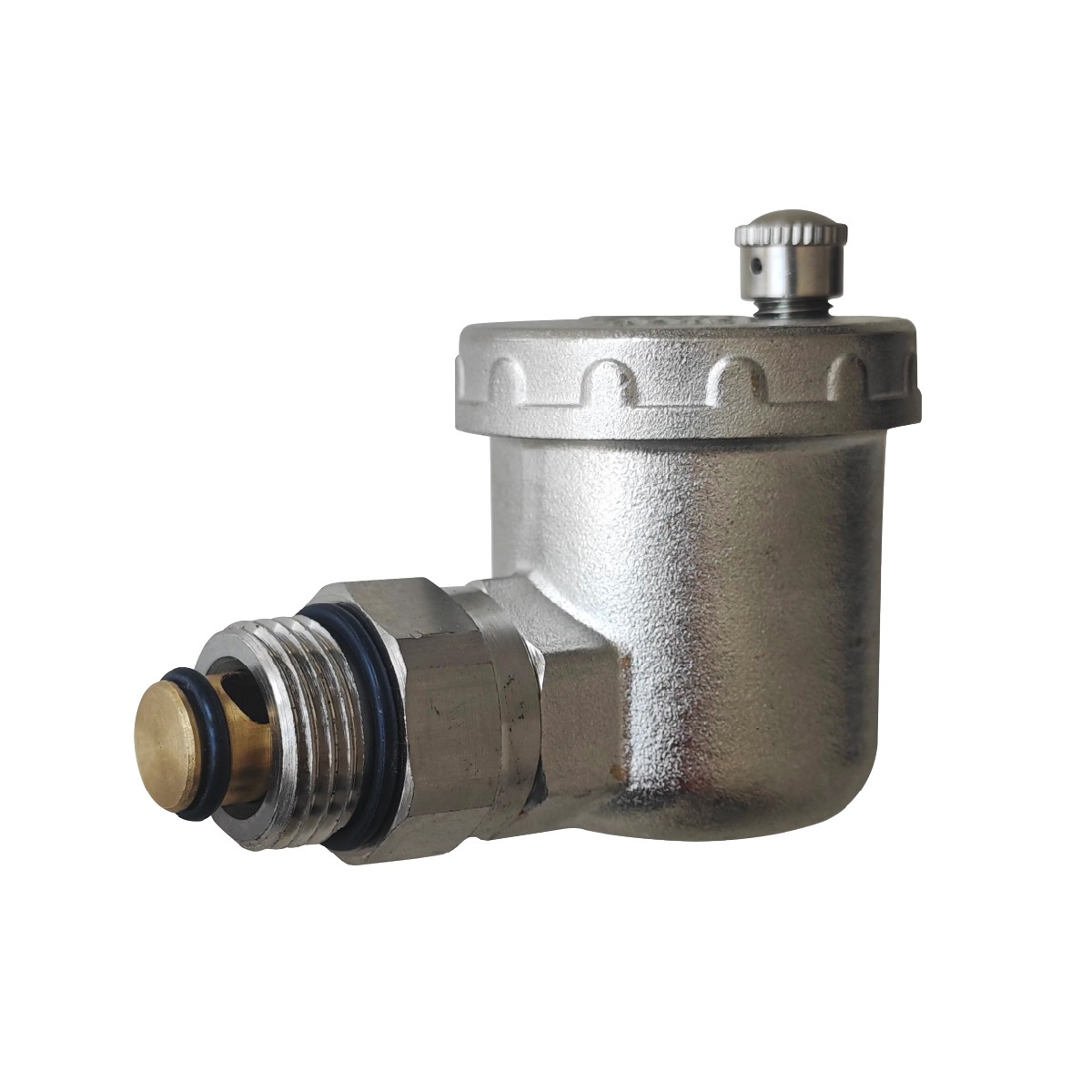

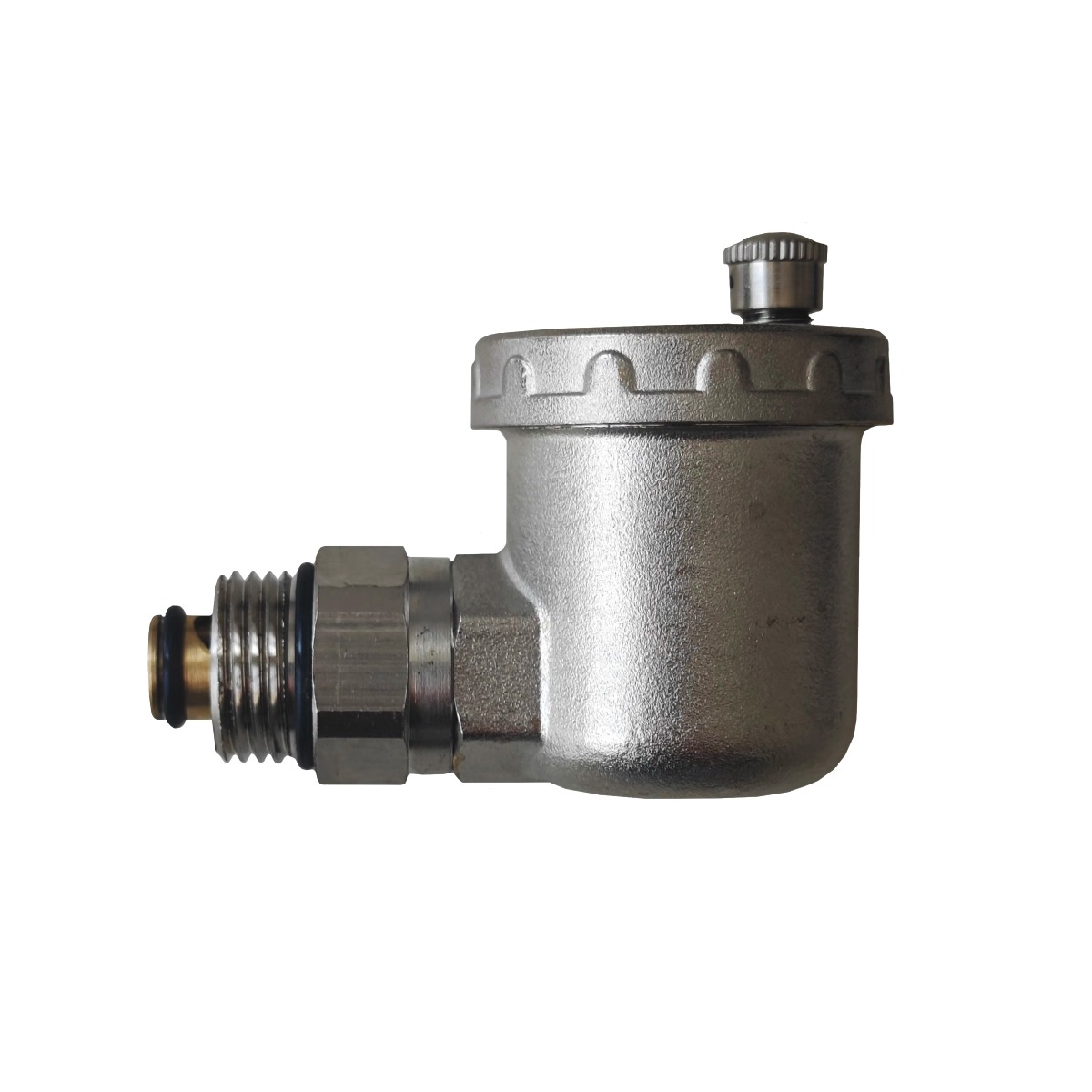

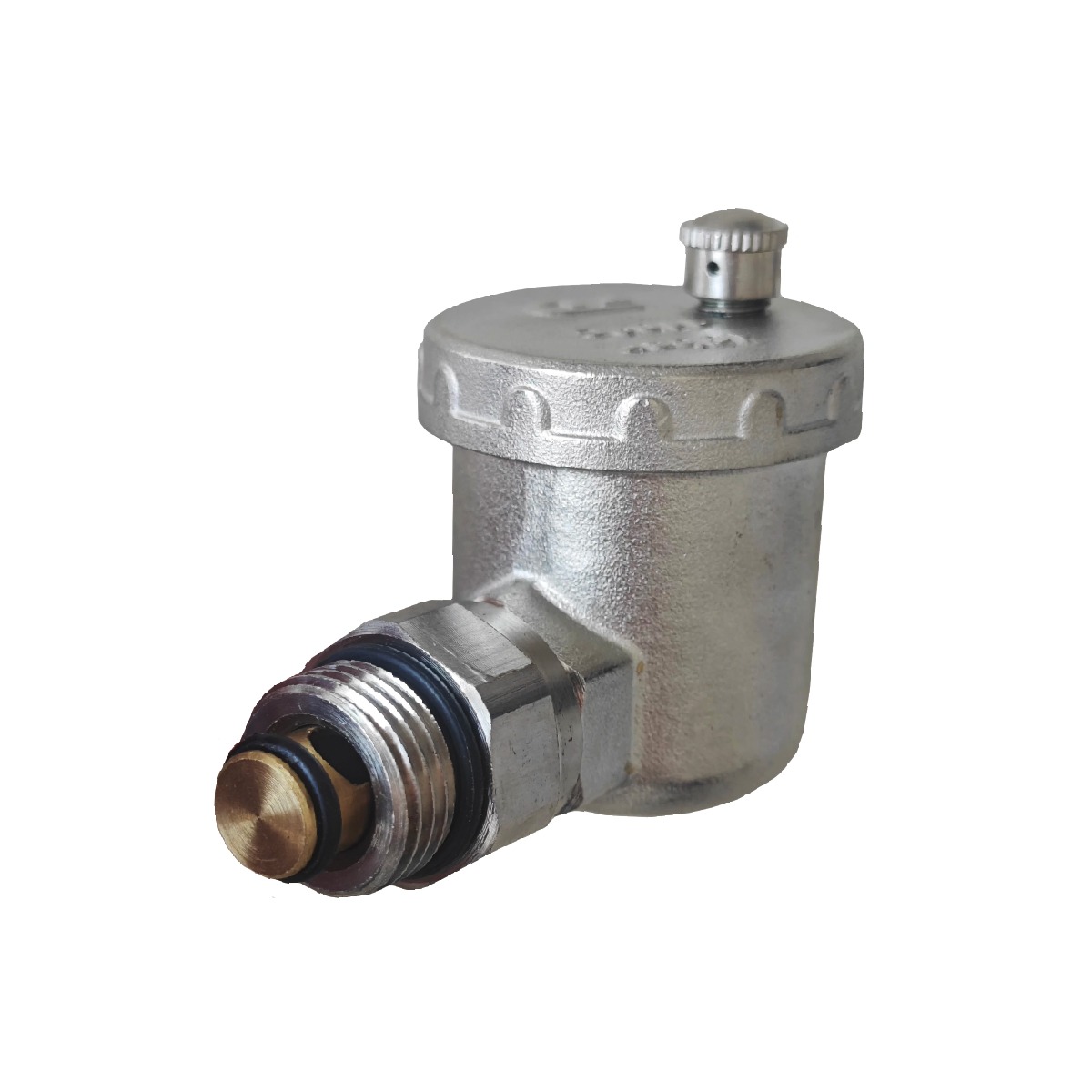

Automatic air duct FADO angular
Артикул товара:
AV11
FADO automatic angular air duct is a full-passage, repairable air duct with an increased service life. Float design with a lever. The body is made of brass, the float is made of polypropylene. Operating temperature up to 110 °C and pressure up to 10 bar. Connection diameter is ½. The lateral location of the nozzle and the upper location of the outlet channel expand the application possibilities and simplify the choice of its installation location. The connection thread is external.
Description.
Features.
Documentation
Description.
Article no.
Size
Weight, g
Packaging
Box
AV11
1/2"
180
1
96
Features.
№
Element name
Meaning.
1
Nominal pressure, bar
10
2
Minimum working pressure, bar
0,2
3
Working environment temperature, °С
0 - 110
4
Diameter of the connection thread
1/2"
5
Maximum ambient temperature, °С
60
