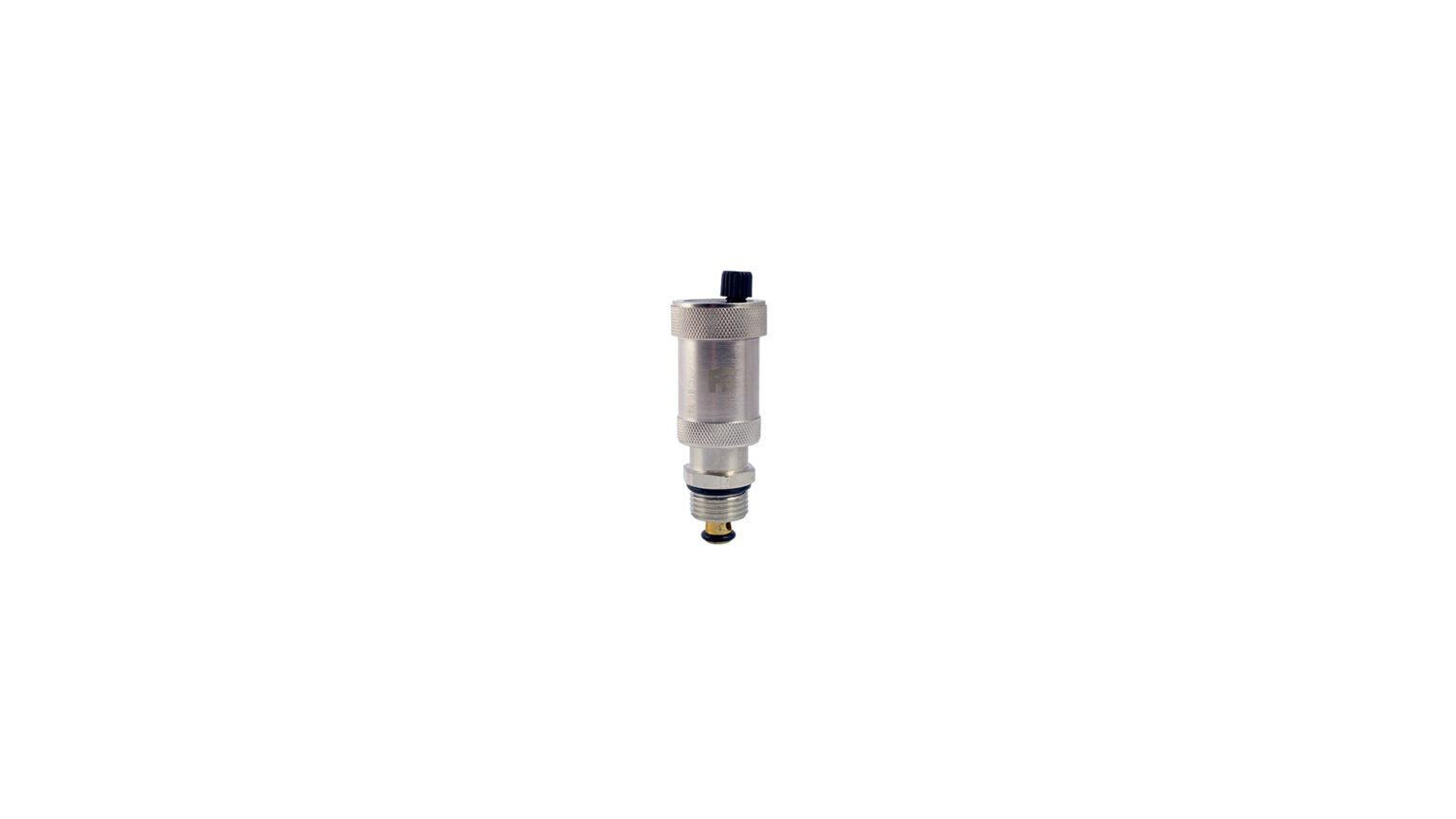

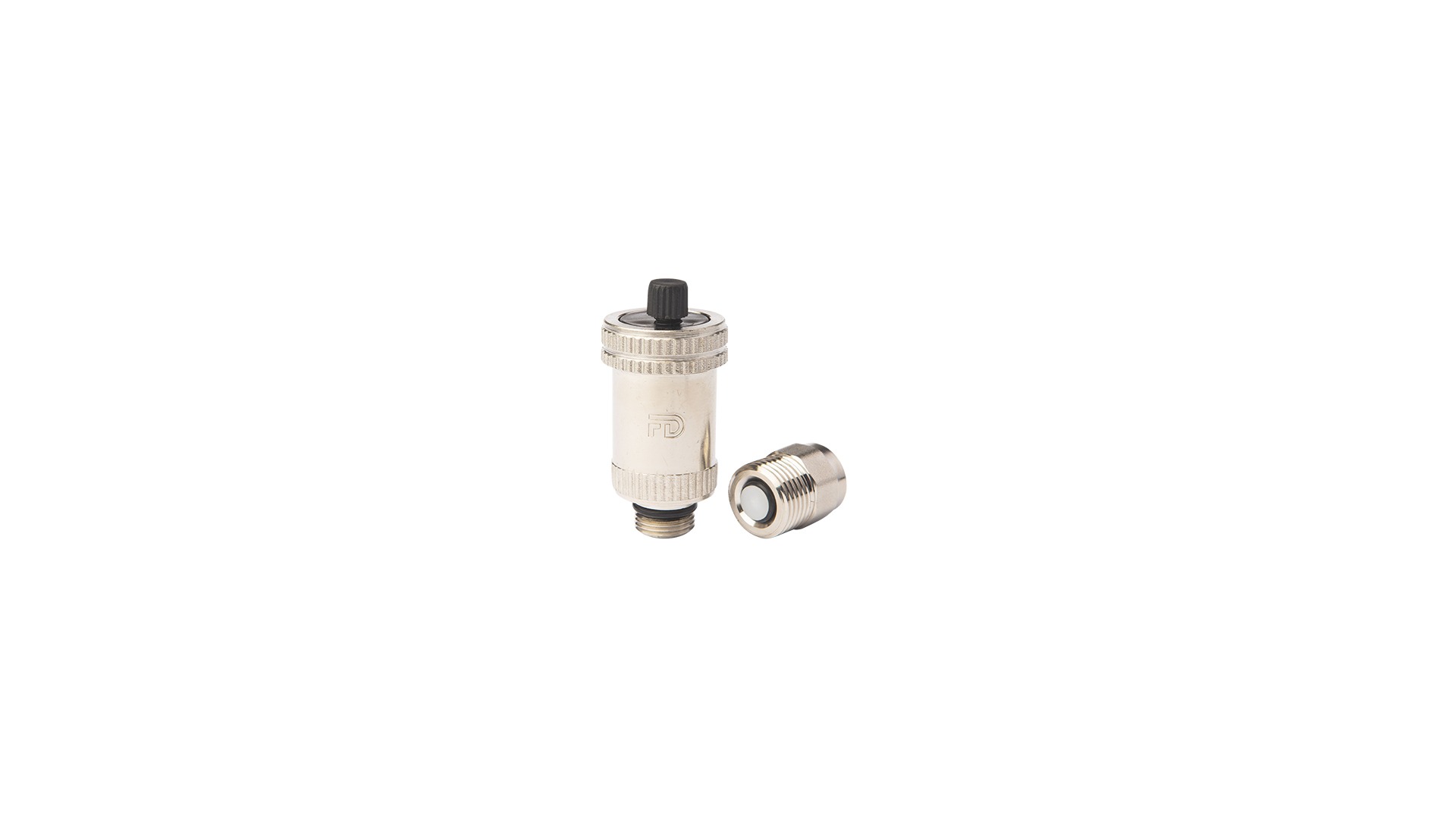

Automatic air duct FADO straight with check valve
Артикул товара:
AV31
FADO automatic straight duct with a check valve is a full-bore, repairable duct with an extended service life. The design is float, with a lever actuator. The body is made of high-quality brass without galvanizing, the float is made of polypropylene. It is installed in systems with an operating temperature of up to 110 °C and a pressure of up to 10 bar. The connection diameter is ½. The connection thread is external.
Description.
Features.
Documentation
Description.
Article no.
Size
Weight, g
Packaging
Box
AV31
1/2"
133
1
112
Features.
№
Element name
Meaning.
1
Nominal pressure, bar
10
2
Minimum working pressure, bar
0,2
3
Working environment temperature, °С
0 - 110
4
Diameter of the connection thread
1/2"
5
Maximum ambient temperature, °С
60
