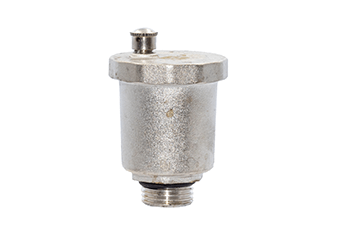

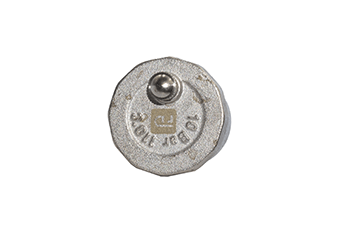

Automatic air duct FADO straight
Артикул товара:
AV01
Automatic straight duct FADO is a full-passage, repairable duct with an increased service life. The design is float, with a lever actuator. The body is made of high-quality brass without galvanizing, the float is made of polypropylene. It is installed in systems with an operating temperature of up to 110 °C and a pressure of up to 10 bar. The connection diameter is ½. The connection thread is external.
Description.
Features.
Documentation
Description.
Article no.
Size
Weight, g
Packaging
Box
AV01
1/2"
184
1
90
Features.
№
Element name
Meaning.
1
Nominal pressure, bar
10
2
Minimum working pressure, bar
0,2
3
Working environment temperature, °С
0 - 110
4
Diameter of the connection thread
1/2"
5
Maximum ambient temperature, °С
60
