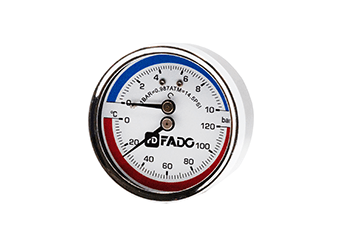

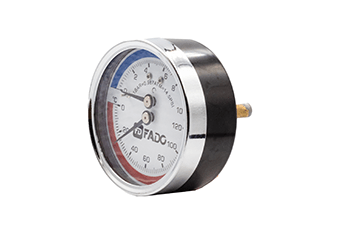

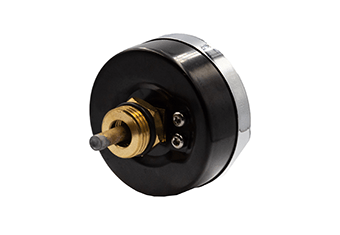

Frontal thermomanometer FADO
Артикул товара:
TMF01
FADO frontal thermometer is a full bore thermometer with a long service life. A strain gauge and a bimetallic thermometer in one body. There are two scales - pressure and temperature. Accuracy class is 1.6. Body diameter is 63 mm. Measured temperature range is from 0 to 120°C, pressure range is from 0 to 6 bar. The connection is axial (rear). Connection diameter is ½".
Description.
Features.
Documentation
Description.
Article no.
Size
Packaging
Box
TMF01
63*1/4"
1
100
Features.
№
Element name
Meaning.
1
Housing diameter, mm
63
2
Accuracy class
1,6
3
Temperature range, °C
1 - 120
4
Pressure reading range, bar
0 - 10
5
Ambient temperature, °C
0 - 60
6
Housing protection class
IP40
7
Sensor material
Copper
8
Diameter of the connection thread
G 1/2
