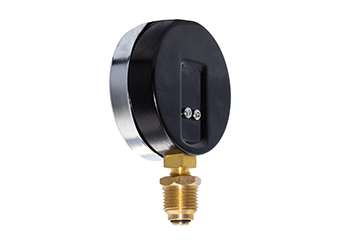

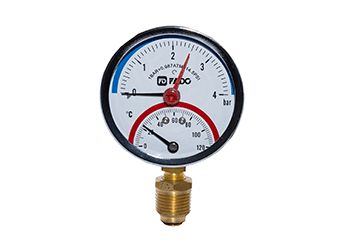

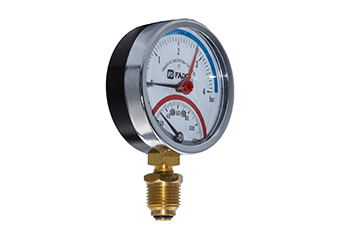

Thermomanometer FADO vertical
Артикул товара:
TMV02
The FADO vertical thermomanometer is a full bore manometer with a long service life. The measuring mechanism of the manometer is made of brass, the body is made of steel. The diameter of the body is 80 mm. Measured temperature range is from 0 to 120°C, pressure range is from 0 to 6 bar. Accuracy class is 1.6. Connection - upper 1/2".
Description.
Features.
Documentation
Description.
Article no.
Size
Packaging
Box
TMV02
80*1/2"
1
100
Features.
№
Element name
Meaning.
1
Housing diameter, mm
63
2
Accuracy class
1,6
3
Temperature range, °C
1 - 120
4
Pressure reading range, bar
0 - 10
5
Ambient temperature, °C
0 - 60
6
Housing protection class
IP40
7
Sensor material
Copper
8
Diameter of the connection thread
G 1/2
